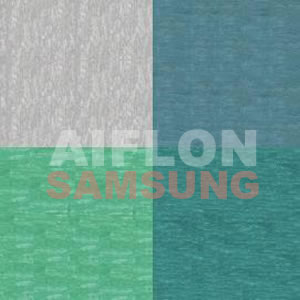

Oil-resistant asbestos sheet

Item: A.S.SEALS.3115

Description:

Specification:

Asseals oil-resisting OCAF, a cost effective oil resistance asbestos-rubber sheets, are made from selected asbestos fibre, natural rubber, filling material and dye.

Used in pipelines and apparatus of petrochemical & oil fields

PROPERTIES & APPLICATION:

Item		Style
Item		3115	3125	3130	3140
Tensile strength¡ÝMpa		9	11	12.7	13
Compressibility¡Ý%		12¡À5
Recovery¡Ý%		35	45	50	50
Density g/cm³		1.6~2.0
Tmax: ¡æ		150	250	300	400
Pmax: Mpa		1.5	2.5	3.0	4.0
At 20# air lub oil,15~30¡æ for 30min	Tensile strength¡ÝMpa	8	9	10.8	26
	Oil absorption¡Ü %	23	23	23	9
	Thickness increase%		20	15	15
At 75# gasoline /3# 15~30¡æ for 5h	Tensile strength¡ÝMpa	6	7	7.9	14.7
	Oil absorption¡Ü %	22	22	22	15
	Thickness increase%		25	25	20
	Oil sealing Mpa	8	10	15	12
Resistance to media		Oils, refrigerators, solvents etc.

Special grade 3150 on request (500 ¡æ, 10Mpa)

Available colour: Green, blue, white etc.

Available with tin steel, SS304 etc. wire mesh insertion (Style: 31**I)

Also available with anti-stick (Style:31**S) or graphite coating (Style: 31**G)

FORMS OF SUPPLY:

Sheets:

1500¡Á4000mm, 1500¡Á2000mm

1500¡Á1350mm, 1500¡Á1000mm

1270¡Á3810mm, 1270¡Á1270mm

Thickness: 0.4~6mm

Cut gaskets

G3115~G3040

Dimensions according to drawings or and standards.
