Metal flat gasket

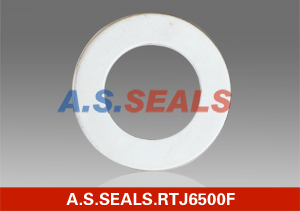

Metal flat gasket
Item: A.S.SEALS.RTJ6500F
Description: 1.Metal Flat gasket is machined from solid metal in flat shape. Normally for large flanges.
2.designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape.
3.Main specifications: Dimension: up to 1100mm,
Pressure:20Mpa
Temperature: -200~+650
Least tighten pressure: 70Mpa
Send Inquiry Now! Live Chat Now!

Specification:
Standard materials:
Standard materials recommended by the ANSI B 16.20
ASTM DIN Material No. Maximum HB Maximum HV Materials code
Soft Iron 1.1003 90 56 D
Low CS 1.0038 120 68 S
4-6Cr1/2Mo 1.7362 130 72 F5
AISI 410 1.4000 170 86 S 410
AISI 304 1.4301 160 83 S 304
AISI 316 1.4401 160 83 S 316
AISI 347 1.4550 160 83 S347
 Other special materials, Nickel, Monel, C276, etc , please request.

Order Example:
Ring-Joint gasket 6500F, Size, special sizes requested,please provide the exactly drawings.
