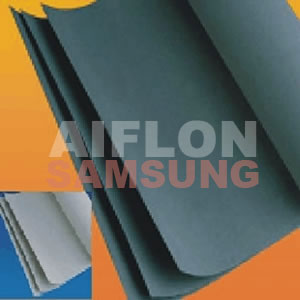

Asbestos rubber beater sheet

Item: A.S.SEALS.3000

Description:

Specification:

CONSTRUCTION:

Asseals 3000 Asbestos emulsion sheet

It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200¡æ

Asseals 3000V Vulcanized Asbestos beat sheet

It has smooth face and high density compared with Style 3000

PROPERTIES & APPLICATION:

Gasket materials for explosion engine cylinder gaskets and chemical gaskets

Suitable to sealing lubricating oil at highest temperature 250¡æ

Item		Style
Item		3000	3000V
Density g/cm³		0.9~1.1	1.2~1.4
Tensile strength ¡ÝMpa		2.5	5
Compressibility ¡Ý%		40¡À7	20¡À5
Recovery ¡Ý%		20	40
Stress relaxation ¡Ü%		30	30
In 20# aviation oil, 150¡æ, 30min	Oil absorption	¡Ü50%	¡Ü30%
In 20# aviation oil, 150¡æ, 30min	Thick. increase	¡Ü6%	¡Ü12%
In water 15~30¡æ, 5h	Thick. increase	¡Ü6%	¡Ü12%

Normal color: Grey, Black, White, other color on request

Also available with anti-stick : 3000S, 3000VS

or graphite coating : 3000G, 3000VG

THICKNESS TOLERANCE:

Item	Tolerance	In same sheet
Thickness	¡Àmm	mm
0.5	0.05	0.06
0.6-0.8	0.06	0.08
1-2	0.08	0.08

FORMS OF SUPPLY:

Sheets

Width: 500mm; 1000mm

Length: 500mm; 1000mm; 1200; 1500mm

Thickness: 0.4~2.0mm

Cut gaskets ---G3000, G3000V

Dimensions according to drawings or specifications.
