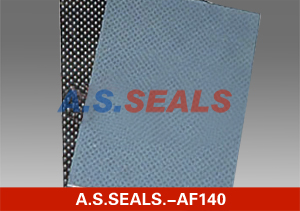

Asbestos Sheet
Asbestos Sheet
Item: A.S.SEALS.-AF140
Description:
Send Inquiry Now! Live Chat Now!

Specification:
Description:It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200 degree C.

stos Beater Sheet

A.S.SEALS.-AF140V is vulcanized asbestos beater sheet, It has smooth face and high density compared with Style A.S.SEALS.-AF140V.
A.S.SEALS.-AF140I is asbestos sheet reinforced with tanged carbon steel, normal as Asseals materials for explosion engine cylinder Asseals and chemical Asseals.

Item
Style
AF140
AF140V
Density g/cm3
0.9~1.1
1.2~1.4
Tensile strength Mpa
2.5
5
Compressibility %
40 7
20 5
Recovery %
20
40
Stress relaxation %
30
30
In 20# aviation oil,
150oC, 30min
Oil absorption
50%
30%
Thick. Increase
6%
12%
In water ,15~30oC, 5h
Thick. Increase
6%
12%
Dimension
500x1000mm,1000x1000mm,1000x1500mm
Thickness
0.4mm~2.0mm
Color
Grey, Black, White, Other color on request
